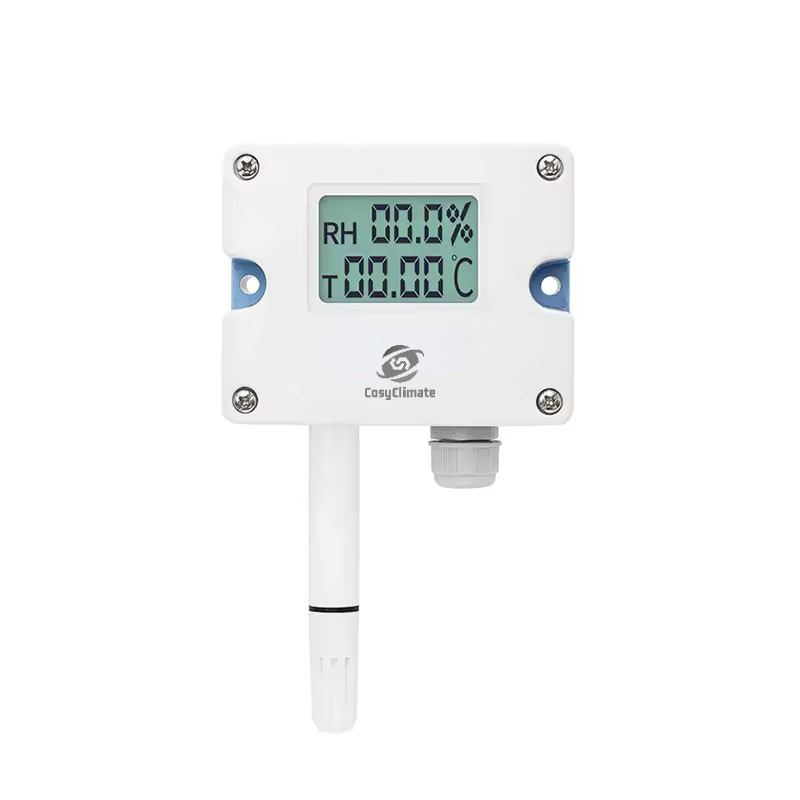

Ducted Temperature and Humidity Transmitter Sensor for HVAC

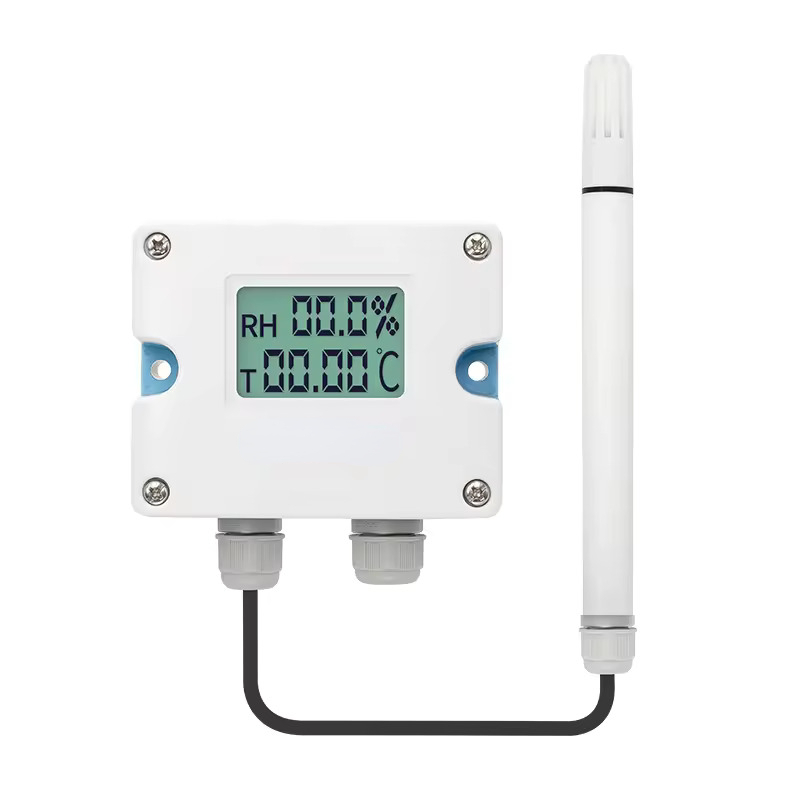

This series temperature and humidity transmitter is designed for industrial applications. It offers three installation methods: wall-mounted, duct, and split-type, and provides current, voltage, and RS485 output options. It is highly adaptable on-site with terminal design for quick installation, making it ideal for use in HVAC systems, buildings, warehouses, greenhouses, and farms where temperature and humidity measurement is required.

Features & Benefits

²  High-precision sensors with excellent stability - Provides accurate and reliable measurements, ensuring consistent performance over time, even in challenging environments.

²  Compact design with LCD dual display - Enhances usability with easy-to-read temperature and humidity data, while the sleek design fits seamlessly into any space.

²  Over-voltage and reverse polarity protection, IP65 rating - Ensures durability and protection against electrical issues and harsh conditions, extending the lifespan of the sensor.

Specification

·         Application:  HVAC, Buildings, Warehouse, Greenhouse etc

·         Power Supply:   15~35VDC

·         Temperature Range:  0~50℃ , -20~60℃

·         Temperature Accuracy:  ±0.3°C@0-60°C

·         Humidity Range:  0% ~ 100% RH

·         Humidity Accuracy:  +3%@ 20℃& 20~80%RH

·         Output:  4-20mA, 0-10V, RS485/Modbus

·         Display:  LCD Display

·         Response Time:  ≤10s(25℃, Slow flow air)

·         Protection Class:  IP65

·         Working Environment:  -20~60℃,5%~95%RH(Non-condensing)

·         Certification:  CE / RoHS

·         Warranty： 2 Years

Please feel free to contact us if you need any further information.
