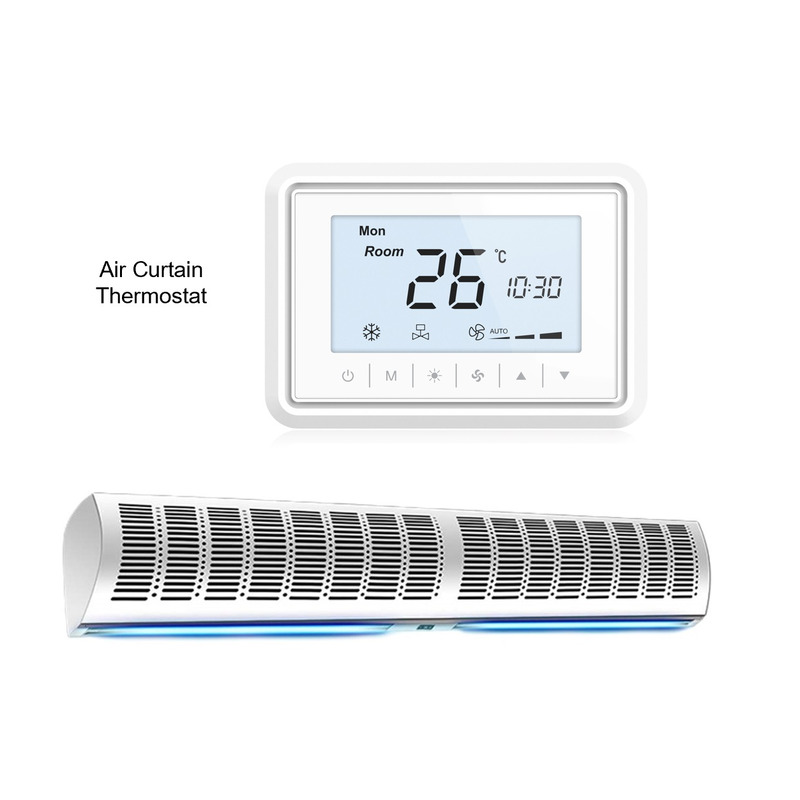

Air Curtain Thermostat with Modbus – Smart Ventilation Controller for Commercial Applications

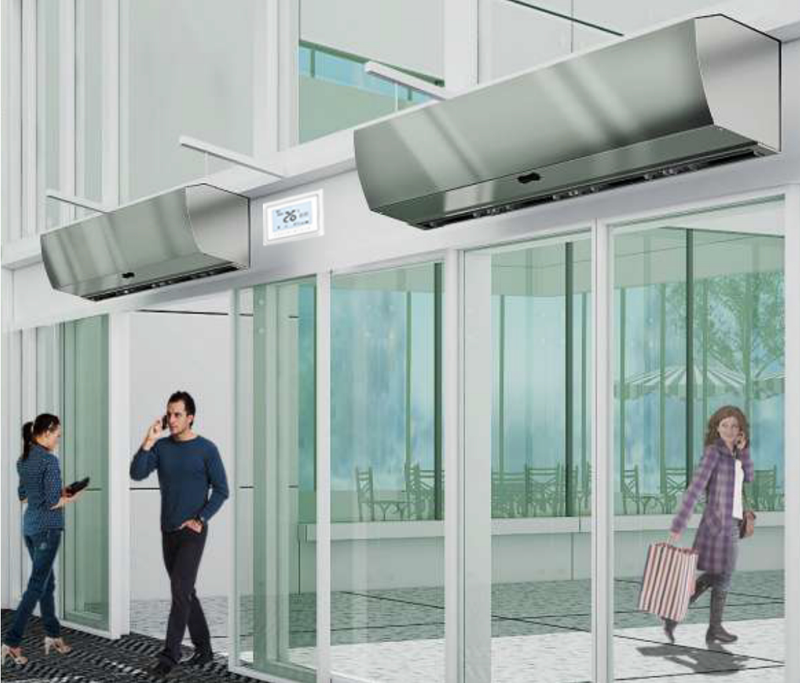

This air curtain thermostat is designed to control air curtain systems including fans, valves, and electric heaters in commercial, residential, and industrial buildings.

Features & Benefits

² Smart Control Interface - Manage and program your air curtain systems locally and remotely.

² Integrated Open-Door Detection - Optimize the operation of your ventilation systems via open-door detection.

² Dual-Sensor Temperature Management - Control the temperature accuracy through internal & external sensors.

² Customizable Scheduling Options - Program daily moments around your lifestyle.

Specification

·       Auto / Manual Mode

·       3 speeds Fan

·       2 steps Electric Heating

·       On/Off Water Heating

·       7 / 5+2 days Programmable

·       RS 485 with Modbus RTU(Optional)

·       Door Contact

·       External Sensor Function

·       Anti-freeze Protection

·       Surface Mounting

·       Pitch of Hole 60mm

·       Certification:  CE / RoHS

·       Warranty： 2 Years

Please feel free to contact us if you need any further information.
