FCU Thermostats

Modbus Programmable Fan Coil Thermostat with LoRa

  • Product Features
  • Product Drawings
  • Application Scenarios

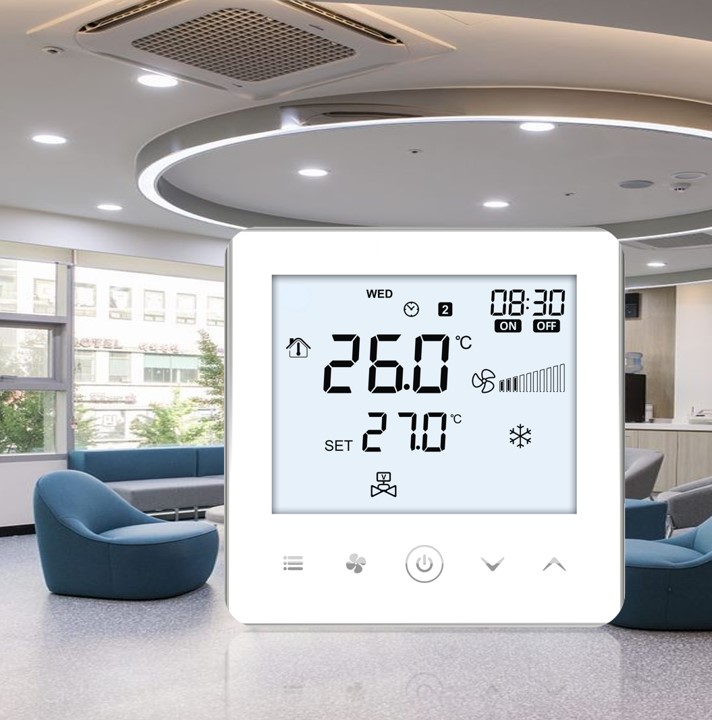

This Touch Key Thermostat is used to control air conditioning, fan coil unit, and underfloor heating.
It is equipped with a large screen with 5 touch keys. Support Modbus RS485 and LoRaWAN to communicate with the central control systems. A personalized schedule for a week can be pre-set with 4 events per day. Enhance the room's comfort and saving energy.



Features & Benefits

² Modbus / LoRa Support - Modbus connectivity allows the product to be used in a BMS.

² Large Display - Improves readability.

² Customizable Schedules - Allows for tailored heating times to enhance comfort and save energy.

² Easy Installation - Saves time and effort.



Specification

·       Application:  FCU, A/C, Underfloor Water Heating, Electric Heating

·       Power Supply: ‎ 230 Volts

·       Communication:  Modbus RTU, LoRaWAN

·       Programmable:  4 Events 7 Days Programming

·       Sensor Type     :  Built-in & External 10k NTC Thermistor(optional)

·       Accuracy:  ± 0.5

·       Load:  5A / 16A

·       Material:  PC +ABS

·       Color:  White / Black

·       Dimension:  86*86*11.8 mm

·       Mounting:  Flush Mounting

·       Pitch of Holes:  60mm (Asian standard electric box)

·       Certification:  CE / RoHS

·       Warranty 2 Years



Please feel free to contact us if you need any further information.
