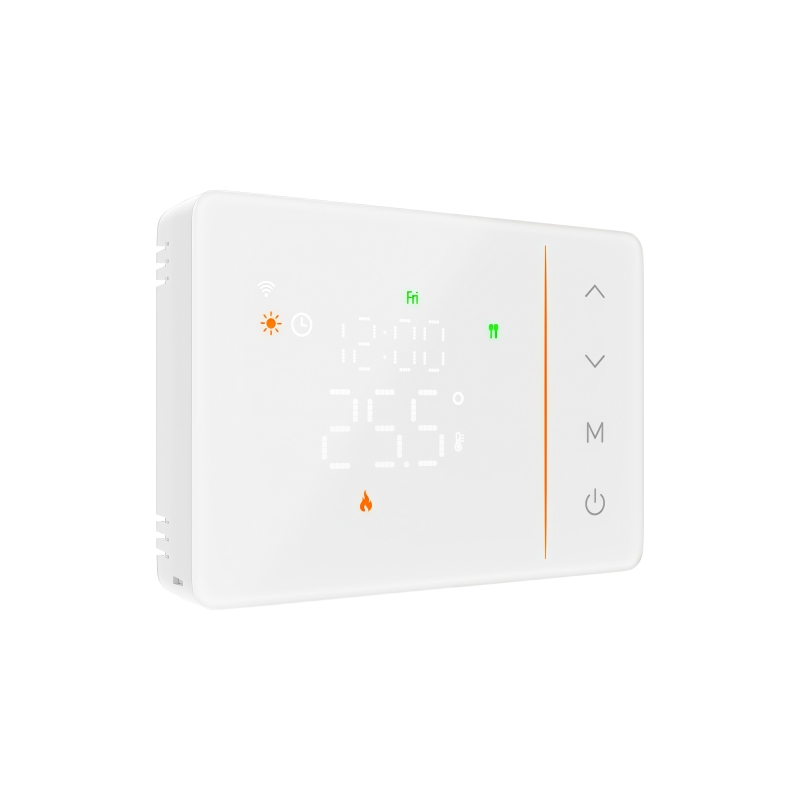

Universal 2-Wire Thermostat for Boiler and Heat Pump Applications

The CosyClimate Smart 2-Wire Boiler Thermostat is a modern WiFi-enabled thermostat designed for residential and light commercial heating systems. Featuring a 2-wire battery-powered installation, dry contact output, and Compatible with boilers and heat pumps, it offers an ideal solution for retrofit projects and new HVAC installations.

With remote control via smartphone, flexible 7-day scheduling, and an elegant ultra-wide display, the CC-V1W delivers comfortable temperature control while improving energy efficiency

Features & Benefits

² Universal HVAC Control - Designed for boiler and heat pump applications with flexible heating and cooling control.

² 2-Wire Dry Contact Output - Provides potential-free NO/NC relay control for reliable ON/OFF switching of HVAC equipment.

² Heating & Cooling Mode Support - Suitable for year-round comfort control in heating and cooling systems.

² Easy 2-Wire Installation - Simple wiring design, ideal for replacement of traditional dry contact thermostats.

² Smart Programmable Control - 5+1+1 / 7-day scheduling with multiple temperature periods for improved comfort and energy efficiency.

² User-Friendly Interface - Large display with intuitive operation for easy temperature adjustment and daily use.

Specification

l Application: Boiler / Heat Pump / HVAC System Control

l Power Supply: Battery Powered

l Connectivity Tech: Wi-Fi / Zigbee

l Control Type: Touch Control / App Control (Wi-Fi Version)

l Control Signal: Dry Contact ON/OFF (NO/NC)

l Output Type: Potential-Free Relay Output

l Operating Mode: Heating / Cooling

l Programmable: 5+1+1 / 7 Day, Multiple Events Per Day

l Accuracy: ±0.5℃

l Sensor: Built-in NTC Temperature Sensor

l Material: PC + ABS

l Color: White / Black

l Dimension: 86 × 86 × 11.7 mm

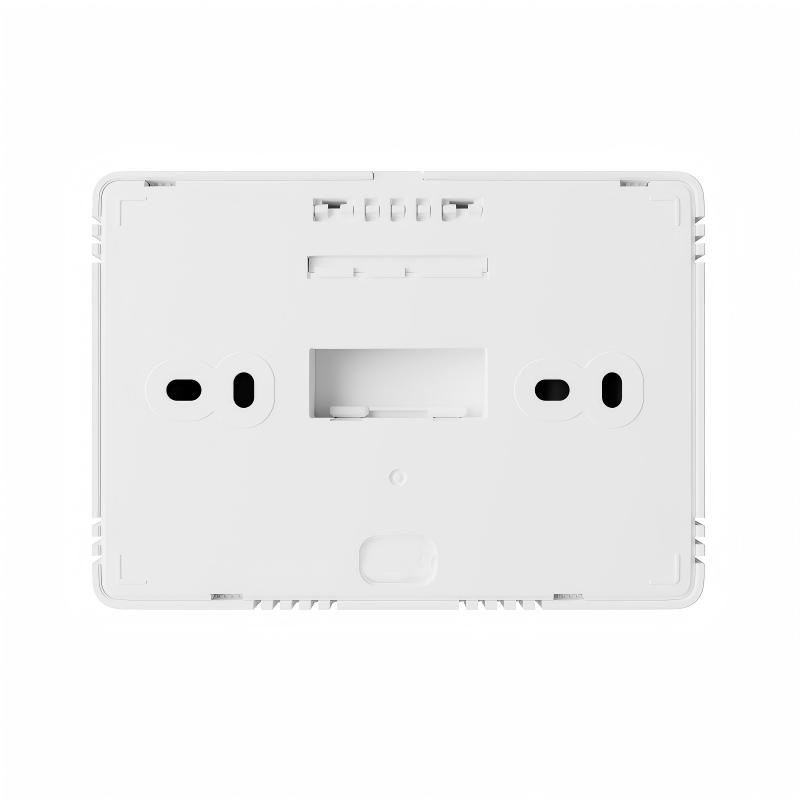

l Mounting: Surface Mounting

l Pitch of Holes: 60mm EU Standard

l Certification: CE / RoHS

l Warranty: 2 Years

Please feel free to contact us if you need any further information.
